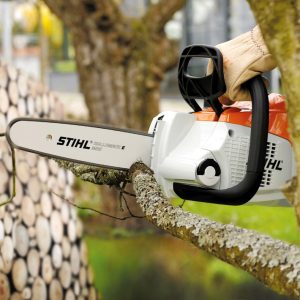

MSA 160 C Chainsaw

Cordless chainsaw for use in noise-sensitive areas. STIHL Quick Chain Tensioning, QuickStop Super chain brake, tool-free fuel cap, with 1/4” PM3 saw chain for a fine cut and high cutting performance.

Technical specifications

Technical specifications	Value
Rated voltage	36 V
Weight ¹⁾	3,1 kg
Weight without battery	2,7 kg
Cutting length	25-30 cm
Sound pressure level ²⁾	84 dB(A)
Sound pressure level ³⁾	84 dB(A)
Sound power level ⁴⁾	95 dB(A)
Vibration level left/right ⁵⁾	2,7/2,9 m/s²
STIHL Oilomatic saw chain type	Picco Micro 3 (PM3)
Chain pitch	1/4″P
Battery Technology	Lithium-Ion AP-System
Recommended battery	AP 180
Battery run time with AP 100 ⁶⁾	up to 18 min
Battery run time with AP 200 ⁶⁾	up to 42 min
Battery run time with AP 300 ⁶⁾	up to 50 min
Battery run time with AR 2000 ⁶⁾	up to 180 min
Battery run time with AR 3000 ⁶⁾	up to 230 min
Battery run time with AR 1000 ⁶⁾	up to 125 min

Standard equipment

QuickStop Super Chain Brake (Q)

The additional braking system for extra safety. Users can trigger the chain brake directly at the rear handle. The chain stops in seconds whenever the user lets go of the rear handle and whenever there is sufficiently strong kickback or when the front hand guard is activated. This unique safety feature ensures even more user protection in all working positions.
STIHL Chain Quick Tensioning (B)

The STIHL chain quick tensioning system (B) makes it very easy to tension the chain. Just release the sprocket cover and turn the knob to set the optimum tension. No tools needed.
CONTROL HANDLE

FOR OPTIMISED ERGONOMICS. Thanks to the soft components on the control handle, your work tool sits comfortably in the hand and allows you to work efficiently.
EC ENGINE

LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC engine enables you to work in an energy efficient manner. This engine also has a long service life.
Toolless filler cap

The tank can be filled quickly and easily using the toolless filler cap.
TWO-HANDED OPERATION

ENSURES COMFORTABLE WORK. Your STIHL chainsaw has an ergonomically shaped handle and a comfortable rear control handle with soft components. Thanks to this two-handed operation, you can work comfortably, effortlessly and safely in all positions.

Accessories
- - AL 300 quick charger

    AL 300 quick charger 230 V. For STIHL AP and AR batteries. Device in housing base for wall mounting and cable rewind, with operating mode indicator (LED) and active battery cooling.
  Technical specifications Value

  Rated voltage 220-240 V

  Weight 1,2 kg

  Rated current 2,3 A

  Charging current 6,5 A

  Weight 2,6 lbs

  Power consumption 0,3 kW
- AL 500 hi-speed charger

  230 V. For shorter charging times, for STIHL AK, AP and AR batteries. Mechanism in housing base for wall-mounting and cable rewind, with operating mode indicator (LED) and active battery cooling.
Technical specifications Value

Rated voltage 220-240 V

Charging current 12 A

Weight 1,3 kg

Rated current 2,6 A

Weight 2,9 lbs

Power consumption 0,6 kW
