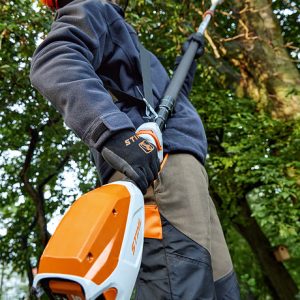

HTA 86 Pole Pruner

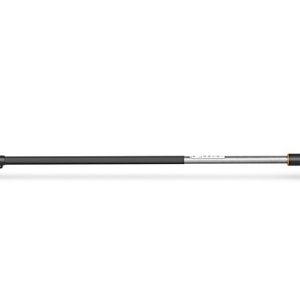

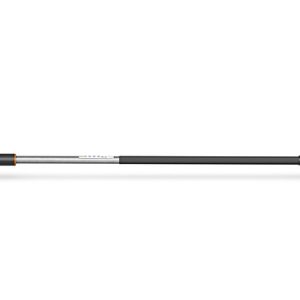

The STIHL HTA 86 cordless pole pruner – with a total length of up to 390 cm –will provide you with useful working support for convenient maintenance of medium-height trees. Those who will benefit from the highly ergonomic design that the stable rectangular telescopic shaft provides include garden and landscape maintenance professionals, specialist tasks in forests and public authorities, as well as people working in domestic environments. The rotatable clamping sleeve lets you quickly increase the shaft length by up to 120 cm as needed. The shaft remains rigid against twisting and bending forces.

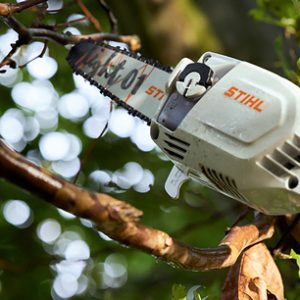

The ¼” PM3 saw chain allows you to easily and precisely cut the wood the way you want to. Thanks to high cutting performance, you can efficiently carry out clean cuts. The premium EC motor combined with a battery from the STIHL AP-System ensures powerful drive with consistent performance. It runs so quietly that you can even work in noise-sensitive areas such as residential settings.

The ergonomic control handle is suitable for both right-handed and left-handed users, as is the integrated self-resetting locking switch. The handlebar with anti-slip guard ensures that you can work efficiently and safely at all times, even in rainy conditions. Other benefits include:

• Tool-free oil tank cap with semi-transparent oil tank for fast refilling and constant level monitoring
• Sturdy branch hook for grabbing loose cuttings from trees up to 5 m tall

All cordless power tools within the STIHL AP-System have been designed for professional users and daily work, even in adverse weather conditions. With that in mind they are certified as splashproof. The effectiveness of this is also verified through demanding internal tests. The splashwater test is aligned with the IPX4 standard, among others.



Technical specifications

Technical specifications	Value
Weight 1)	4,6 kg
Battery technology	Lithium-Ionen AP-System
Sound pressure level 2)	77 dB(A)
Sound power level 2)	93 dB(A)
Vibration level left/right 3)	1/1 m/s²
Total length 4)	270-390 cm
Battery run time with AP 100 5)	up to 18 min
Battery run time with AP 200 5)	up to 42 min
Battery run time with AP 300 5)	up to 55 min
Battery run time with AR 2000 5)	up to 175 min
Battery run time with AR 3000 5)	up to 230 min



Standard equipment



•

  AL 500 hi-speed charger

  230 V. For shorter charging times, for STIHL AK, AP and AR batteries. Mechanism in housing base for wall-mounting and cable rewind, with operating mode indicator (LED) and active battery cooling.

Technical specifications	Value
Rated voltage	220-240 V
Charging current	12 A
Weight	1,3 kg
Rated current	2,6 A
Weight	2,9 lbs
Power consumption	0,6 kW



•

  Bracket for telescopic shaft

  For outstandingly ergonomic design in combination with a basic shoulder strap or the RTS harness. The tool is easy to attach and quick to release. Included in the scope of delivery with the HT 56, HT 103 and HT 133. Suitable for the HT 101, HT 131, HTA 85 and HLA 85.



•

  RTS harness

  For prolonged use. Can be adjusted to the user’s size, makes particularly effortless and ergonomic work possible. Can be used with the HT 101, HT 103, HT 131, HT 133, HTA 65, HTA 85, HTE 60, KombiEngines with HT-KM or HL-KM 145° (not KMA 130 R), HL 94 C-E (not HL 94 KC-E), HLA 65, HLA 85 and HLE 71 (not HLE 71 K).



Battery

•

  AP 300

  Very powerful lithium-ion batteries with charge level indicator (four LEDs). 227 Wh battery power.

Technical specifications	Value
Rated voltage	36 V
Battery weight	1,8 kg
Battery energy content 1)	227 W·h
Battery cell technology	LITHIUM-ION
